產品介紹：
用途：
本產品具有卓越的耐高溫性能、耐潮濕性能、阻燃性能。特點：重量輕、體積小、柔軟。主要用于-65~150℃高低溫條件下電子設備、儀器儀表線路及其它精密電器裝置內部連接等。
Usage:
this product has excellent high temperature resistance, moisture resistance, flame retardant properties. Features: light weight, small size, soft. Mainly used for -65~150℃ high and low temperature conditions, electronic equipment, instruments and circuit and other precision electrical devices, such as internal connection.
立即咨詢

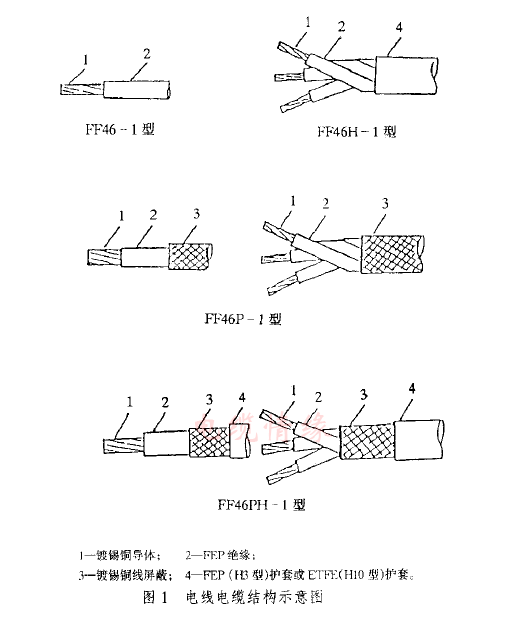

鍍錫銅芯聚全氟乙丙烯絕緣電線電纜
Tin copper core poly fluorine ethylene propylene insulated wire and cable for aerospace use
技術規范 specification ：GJB/773A/11A-2000
名稱：FF46-1 鍍錫銅芯FEP絕緣電線電纜
Name：Tin plated copper conductor FEP insulated wire and cable
FF46P11-1 鍍錫銅芯FEP絕緣鍍錫圓銅線編織屏蔽電線電纜
Tin plated copper conductor FEP insulated tin plated round copper wire braid shielded wire and cable
FF46H3-1 鍍錫銅芯FEP絕緣FEP護套電線電纜
Tin plated copper conductor FEP insulated FEP sheathed wire and cable
FF46P11H3-1 鍍錫銅芯FEP絕緣鍍錫圓銅線編織屏蔽FEP護套電線電纜
Tin plated copper conductor FEP insulated tin plated round copper wire braided shield FEP sheathed wire and cable
FF46P13H3-1 鍍錫銅芯FEP絕緣鍍錫圓銅線繞包屏蔽FEP護套電線電纜
Tin plated copper conductor FEP insulated, tin plated round copper wire shielded FEP sheathed wire and cable
FF46H10-1 鍍錫銅芯FEP絕緣ETFE護套電線電纜
Tin plated copper conductor FEP insulated ETFE sheathed wire and cable
FF46P11H10-1 鍍錫銅芯FEP絕緣鍍錫圓銅線編織屏蔽ETFE護套電線電纜
Tin plated copper conductor FEP insulated tin plated round copper wire braided shield ETFE sheathed wire and cable
FF46P13H10-1 鍍錫銅芯FEP絕緣鍍錫圓銅線繞包屏蔽ETFE護套電線電纜
Tin plated copper conductor FEP insulated, tin plated round copper wire shielded ETFE sheathed wire and cable
使用特性
額定電壓：交流600V；
額定溫度：150℃
使用環境溫度：-65℃。
阻燃性能: 不延然 （150±5）℃×15min，無冒煙現象。
Features:
Related voltage:AC 600V
Related temperatur:150℃
The lowest environment temperature:-65℃
Flame retardant features: do not extended （150±5）℃×15min ,no smoke
鍍錫銅芯FEP絕緣電線參數表
Parameter table of FEP insulated wire with tin plated copper core
|
導體標稱截面 mm 2 Conductor section area |
導體結構 根數/單線標稱直徑mm Conductor structure No/single wire nominal diameter |
成品電線外徑mm Cable OD |
導體直流電阻 值Ω/km Conductor max.DC resistance |
成品電線重量 值kg/km Max. Cable weight |
|
0.14 |
19/0.10 |
1.02±0.05 |
136 |
3.01 |
|
0.2 |
19/0.12 |
1.14±0.05 |
90.4 |
4.22 |
|
0.4/0.3 |
19/0.16 |
1.32±0.05 |
53.1 |
5.87 |
|
0.6/0.5 |
19/0.20 |
1.52±0.05 |
32.4 |
8.43 |
|
（0.75） |
19/0.23 |
1.70±0.05 |
24.6 |
10.5 |
|
1 |
19/0.26 |
1.80±0.05 |
20.4 |
12.5 |
|
1.2 |
19/0.28 |
2.06±0.08 |
16.6 |
16.1 |
|
（1.5） |
19/0.32 |
2.25±0.08 |
12.7 |
19.5 |
|
2 |
19/0.36 |
2.41±0.08 |
10.0 |
24.5 |
|
（2.5） |
37/0.30 |
2.78±0.10 |
7.43 |
32.3 |
|
3 |
37/0.32 |
2.90±0.10 |
6.63 |
37.3 |
|
（4） |
37/0.37 |
3.38±0.10 |
4.88 |
46.9 |
|
5 |
37/0.40 |
3.53±0.10 |
4.13 |
56.5 |
|
（6） |
37/0.45 |
4.08±0.10 |
3.30 |
68.2 |
|
8 |
133/0.29 |
5.03±0.10 |
2.30 |
97.0 |
鍍錫銅芯FEP絕緣電纜參數表
Parameter table of FEP insulated cable with tin plated copper core
|
導體標稱 截面 Conductor section area |
護套厚度 Sheath thickness |
屏蔽單絲 標稱直徑 Mm Shield single wire nominal diameter |
成品電纜外徑值 MAX.OD of cable |
導體直流電阻 值Ω/km Conductor DC resistance |
|||||
|
mm 2 |
max. |
min. |
FF46H3-1 FF46H10-1 |
FF46P11-1 |
FF46P11H3-1 FF46P11H10-1 |
FF46P13H3-1 FF46P13H10-1 |
|||
|
1×0.14 |
0.38 |
0.18 |
0.10 |
- |
1.52 |
2.24 |
2.01 |
136 |
|
|
1×0.2 |
0.38 |
0.18 |
0.10 |
- |
1.64 |
2.36 |
2.13 |
90.4 |
|
|
1×0.4/0.3 |
0.38 |
0.18 |
0.10 |
- |
1.82 |
2.54 |
2.31 |
53.1 |
|
|
1×0.6/0.5 |
0.38 |
0.18 |
0.10 |
- |
2.02 |
2.74 |
2.51 |
32.4 |
|
|
1×（0.75） |
0.38 |
0.18 |
0.10 |
- |
2.20 |
2.92 |
2.69 |
24.6 |
|
|
1×1 |
0.38 |
0.18 |
0.10 |
- |
2.30 |
3.03 |
2.80 |
20.4 |
|
|
1×1.2 |
0.38 |
0.18 |
0.10 |
- |
2.59 |
3.31 |
3.08 |
16.6 |
|
|
1×（1.5） |
0.38 |
0.18 |
0.10 |
- |
2.78 |
3.50 |
3.27 |
12.7 |
|
|
1×2 |
0.38 |
0.18 |
0.10 |
- |
2.94 |
3.66 |
3.43 |
10.0 |
|
|
1×（2.5） |
0.38 |
0.18 |
0.10 |
- |
3.33 |
4.05 |
3.82 |
7.43 |
|
|
1×3 |
0.38 |
0.18 |
0.10 |
- |
3.45 |
4.17 |
3.94 |
6.63 |
|
|
1×（4） |
0.51 |
0.25 |
0.10 |
- |
3.93 |
4.95 |
4.72 |
4.88 |
|
|
1×5 |
0.51 |
0.25 |
0.10 |
- |
4.08 |
5.10 |
4.87 |
4.13 |
|
|
1×（6） |
0.51 |
0.25 |
0.10 |
- |
4.63 |
5.65 |
5.42 |
3.30 |
|
|
2×0.14 |
0.38 |
0.18 |
0.10 |
2.86 |
2.59 |
3.31 |
3.08 |
139 |
|
|
2×0.2 |
0.38 |
0.18 |
0.10 |
3.10 |
2.83 |
3.55 |
3.32 |
92.2 |
|
|
2×0.4/0.3 |
0.38 |
0.18 |
0.10 |
3.46 |
3.19 |
3.91 |
3.68 |
54.2 |
|
|
2×0.6/0.5 |
0.38 |
0.18 |
0.10 |
3.86 |
3.59 |
4.31 |
4.08 |
33.1 |
|
|
2×（0.75） |
0.51 |
0.25 |
0.10 |
4.52 |
3.95 |
4.97 |
4.74 |
25.1 |
|
|
2×1 |
0.51 |
0.25 |
0.10 |
4.72 |
4.15 |
5.17 |
4.94 |
20.8 |
|
|
2×1.2 |
0.51 |
0.25 |
0.10 |
5.30 |
4.73 |
5.75 |
5.52 |
16.9 |
|
|
2×（1.5） |
0.51 |
0.25 |
0.10 |
5.68 |
5.11 |
6.13 |
5.90 |
13.0 |
|
|
2×2 |
0.51 |
0.25 |
0.10 |
6.00 |
5.43 |
6.45 |
6.22 |
10.2 |
|
|
3×0.14 |
0.38 |
0.18 |
0.10 |
3.03 |
2.76 |
3.48 |
3.25 |
139 |
|
|
3×0.2 |
0.38 |
0.18 |
0.10 |
3.29 |
3.02 |
3.74 |
3.51 |
92.2 |
|
|
3×0.4/0.3 |
0.38 |
0.18 |
0.10 |
3.68 |
3.41 |
4.13 |
3.90 |
54.2 |
|
|
3×0.6/0.5 |
0.38 |
0.18 |
0.10 |
4.11 |
3.84 |
4.56 |
4.33 |
33.1 |
|
|
3×（0.75） |
0.51 |
0.25 |
0.10 |
4.80 |
4.23 |
5.25 |
5.02 |
25.1 |
|
|
3×1 |
0.51 |
0.25 |
0.10 |
5.02 |
4.45 |
5.47 |
5.24 |
20.8 |
|
|
3×1.2 |
0.51 |
0.25 |
0.10 |
5.64 |
5.07 |
6.09 |
5.86 |
16.9 |
|
|
3×（1.5） |
0.51 |
0.25 |
0.10 |
6.05 |
5.48 |
6.50 |
6.27 |
13.0 |
|
|
3×2 |
0.51 |
0.25 |
0.10 |
6.40 |
5.83 |
6.85 |
6.62 |
10.2 |
|
|
4×0.14 |
0.38 |
0.18 |
0.10 |
3.31 |
3.04 |
3.76 |
3.53 |
139 |
|
|
4×0.2 |
0.38 |
0.18 |
0.10 |
3.60 |
3.33 |
4.05 |
3.82 |
92.2 |
|
|
4×0.4/0.3 |
0.38 |
0.18 |
0.10 |
4.04 |
3.77 |
4.49 |
4.26 |
54.2 |
|
|
4×0.6/0.5 |
0.51 |
0.25 |
0.10 |
4.82 |
4.25 |
5.27 |
5.04 |
33.1 |
|
|
4×（0.75） |
0.51 |
0.25 |
0.10 |
5.26 |
4.69 |
5.71 |
5.48 |
25.1 |
|
|
4×1 |
0.51 |
0.25 |
0.10 |
5.50 |
4.93 |
5.95 |
5.72 |
20.8 |
|
|
4×1.2 |
0.51 |
0.25 |
0.10 |
6.20 |
5.63 |
6.65 |
6.42 |
16.9 |
|
|
4×（1.5） |
0.51 |
0.25 |
0.10 |
6.66 |
6.09 |
7.11 |
6.88 |
13.0 |
|
|
4×2 |
0.51 |
0.25 |
0.10 |
7.05 |
6.48 |
7.50 |
7.27 |
10.2 |
|
